Tempered safety glass for pool fence

Enhanced Strength

LYD GLASS only uses A-grade float glass to produce tempered glass, which will reduce the self-explosion rate of tempered glass. The glass will be flat-edged and polished, with 3-5mm round safety corners. The safety corners will avoid scratches on personnel. Tempered glass will be packed in strong wooden boxes or steel pallets and our tempered glass complies with American (CAN CGSB 12.1-2022, ANSI Z97.1-2015(R2020) and CPSC 16 CFR 1201-2024) and European standards (CE EN-12150-2:2004).

• Superior Safety

  Tempered glass is a type of safety glass processed by controlled thermal or chemical treatments to increase its strength compared with normal glass. When broken, it shatters into small granular chunks instead of splintering into jagged shards, making it safer for use in various applications.

  Production Process

  The production of tempered glass primarily involves a thermal tempering process, which induces compressive stress on the glass surface and tensile stress in the core.

  Glass Preparation (Pre-Tempering Fabrication)

  Cutting: Large sheets of annealed (float) glass are cut to the exact required dimensions and shapes using automated glass cutting machines.

  Edging

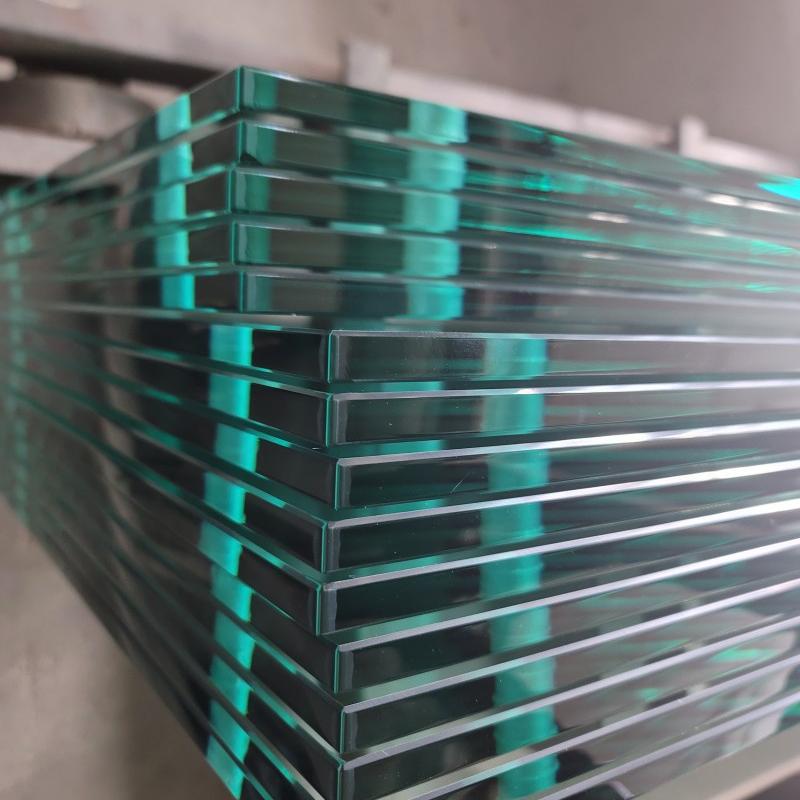

  All edges of the cut glass are ground and polished.scratching people.This removes sharp edges and micro-cracks that could lead to breakage during the tempering process. Frameless tempered glass has 3m-5mm rounded safety corners to avoid .

  Edging can be flat, pencil, beveled, etc.

  Drilling/Notching

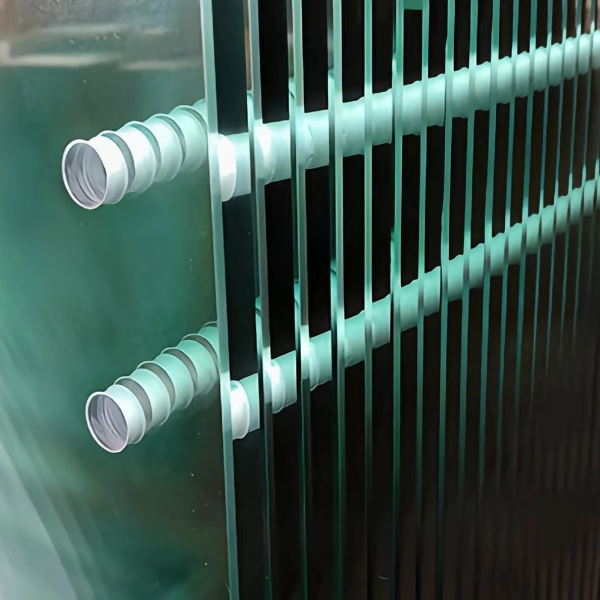

  Any holes, cut-outs, or notches required for hardware, hinges, or specific designs are precisely drilled or cut at this stage. It is critical that all fabrication is completed before tempering, as tempered glass cannot be cut, drilled, or modified once processed.

  Washing

  The prepared glass sheets are thoroughly washed with de-ionized water and brushed to remove any dust, debris, oils, or particles. This ensures a clean surface for uniform heating and prevents defects.

• Excellent Thermal Stability

  Tempered glass exhibits remarkable thermal stability, capable of withstanding temperature fluctuations ranging from 250 to 320°C. In contrast, ordinary annealed glass can only tolerate temperature changes between 20 and 100°C.



  Heating (Furnace Process)

  The clean glass is fed into a tempering furnace (also known as a tempering oven or lehr).

  Inside the furnace, the glass is heated to a very high temperature, typically between 620°C to 700°C (1150°F to 1300°F), which is just above its annealing point but below its melting point.

  The heating process is carefully controlled to ensure uniform temperature distribution throughout the glass. The glass softens slightly at this temperature.



  Quenching (Rapid Cooling)

  Immediately after reaching the desired temperature, the hot glass is rapidly cooled (quenched).

  This is achieved by blowing high-pressure air blasts onto both surfaces of the glass simultaneously and uniformly.

  The rapid cooling causes the outer surfaces of the glass to cool and solidify much faster than the inner core.



  Stress Creation (Compression & Tension)

  As the outer surfaces cool and harden, they contract. The interior, still hot and molten, continues to cool and contract more slowly.

  The faster-cooled outer layers are put into compression, while the slower-cooled interior remains in tension. This locked-in stress state (compressive stress on the surface and tensile stress in the core) is what gives tempered glass its significantly increased strength and its characteristic safe breakage pattern.



  Materials: The primary materials involved in tempered glass production are

  Float Glass: High-quality annealed (regular) float glass is the base material. This can be clear, low-iron (extra clear), tinted, or coated float glass.

  Air: Used extensively in the quenching process.

  Water (De-ionized): Used for washing the glass.



  Advantages

  Superior Strength: 4 to 5 times stronger than annealed glass of the same thickness. This leads to higher resistance against impact, mechanical stress, thermal stress, and bending.

  Safety Breakage: Designed to shatter into small, blunt, pebble-like pieces when broken, significantly reducing the risk of serious injury compared to the large, sharp shards of annealed glass.

  High Thermal Shock Resistance: Can withstand larger and more rapid temperature differentials (up to 200°C - 300°C) without breaking, making it suitable for environments with fluctuating temperatures.

  Durability: Its increased strength makes it more durable and long-lasting in demanding applications.

  Versatility: Can be used in a wide range of applications, from architectural to automotive and appliance.

  Optical Clarity: Maintains the same optical properties as the original float glass (unless treated with low-iron or tinted glass).



  Application Scenarios

  Tempered glass is a common choice for applications where safety, strength, and thermal resistance are crucial:

  Windows & Doors: Especially in areas prone to high winds, impacts, or where safety is a concern.

  Shower Enclosures & Bathtub Screens: Frameless shower doors, cubicles, and fixed panels.

  Glass Railings & Balustrades: For staircases, balconies, and decks (often also laminated for added safety).

  Table Tops & Shelving: For furniture, retail displays, and heavy-duty storage.

  Partition Walls: In offices and homes.

  Skylights & Canopies: Though often tempered laminated for overhead applications.

  Commercial Storefronts: For enhanced security and durability.

  Automotive: Side and rear windows (windshields are typically laminated).

  Appliances: Oven doors, microwave doors, refrigerator shelves.

  Sports Facilities: Squash court walls, backboards for basketball hoops.

  Marine & Transportation: Windows and doors in boats, trains, buses.

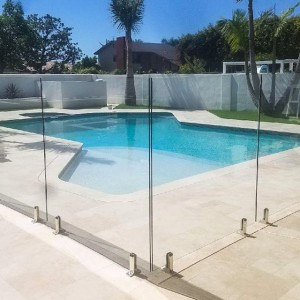

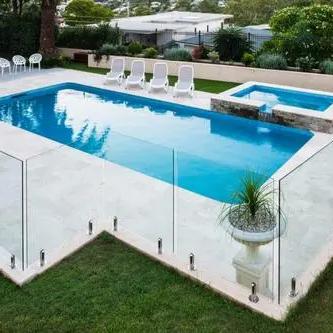

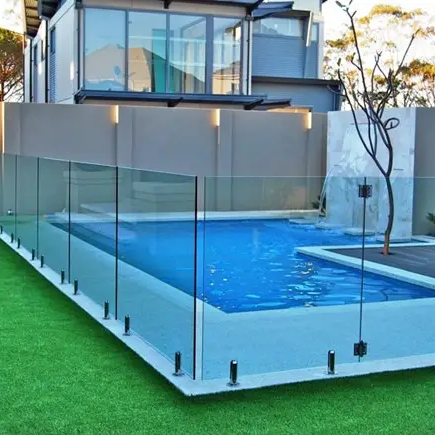

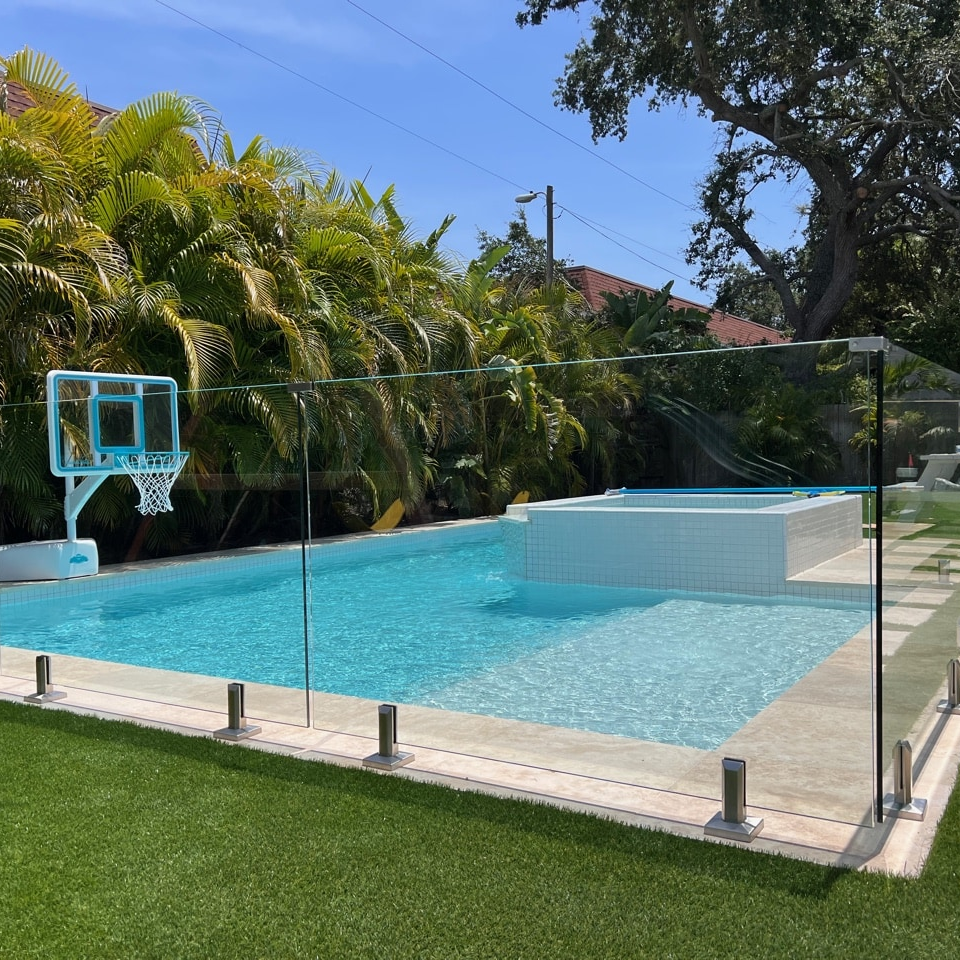

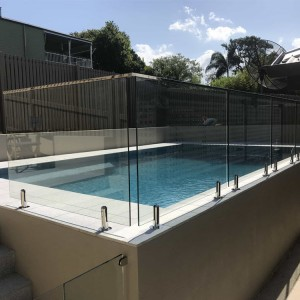

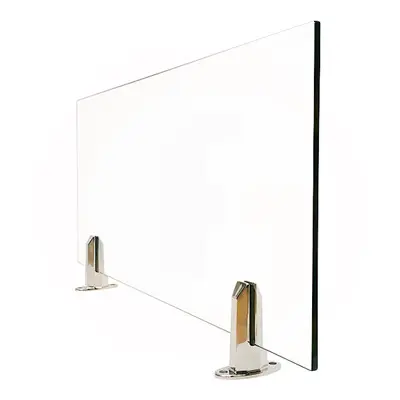

  Frameless Glass Assemblies: Doors within buildings, balustrades, pool fence where a single robust glass panel is required.

  Standard Compliance: Meets or exceeds standards such as:

  CE-EN 12150-2:2004 (Europe - for Thermal Toughened Safety Glass)

  ANSI Z97.1-2015 (R2020) (USA - Safety Glazing Materials)

  CPSC 16 CFR 1201-2024 (USA - Safety Standard for Architectural Glazing Materials)

  Tempered glass remains foundational in the modern glass industry, balancing enhanced safety with high performance and aesthetic appeal.



Tempered Laminated Glass (Toughened Laminated, Tempered-PVB-Tempered Glass)

Tempered Laminated Glass is a composite glass product that combines the high strength of tempered glass with the safety and integrity of laminated glass. It consists of two or more panes of tempered glass permanently bonded together with one or more layers of polymeric interlayers (typically PVB, EVA, or SGP) under heat and pressure. This combination offers unparalleled safety, strength, durability, and a range of functional benefits.

• Production Process

  Production Process

  The production of tempered laminated glass is a multi-stage process that leverages the individual processes of tempering and lamination.

  Interlayer Preparation

  The chosen interlayer material (PVB or SGP film) is cut to the exact dimensions of the tempered glass panes.

  For multiple layers of glass or interlayer, the sequence is carefully planned.

  Layering/Assembly (Clean Room Environment)

  In a precisely controlled, clean, and often climate-controlled environment, the tempered glass panes are meticulously stacked with the chosen interlayer(s) in between them.

  Operators ensure no dust or debris gets trapped between the layers.

  The typical structure is Glass | Interlayer | Glass, but it can be more complex (e.g., Glass | Interlayer | Glass | Interlayer | Glass).

  Pre-Lamination (Nipping/Pre-Pressing/Vacuum Bagging)

  The assembled "sandwich" is run through a roller press (nipping machine) or placed in a vacuum bag/chamber.

  This process removes most of the trapped air between the glass and interlayer, creating a preliminary bond and preventing bubble formation during final lamination.

  Autoclave Curing (Final Lamination)

  The pre-laminated glass is placed into an autoclave (a large, sealed pressure vessel).

  Inside the autoclave, the glass is subjected to carefully controlled high heat (typically 120°C - 150°C) and high pressure (e.g., 8-15 bar) for several hours.

  This process ensures the complete melting and permanent bonding of the interlayer to the tempered glass surfaces, effectively creating a single, integrated unit.

  Cooling and Quality Control

  After the autoclave cycle, the glass is slowly cooled.

  Thorough physical and optical inspections are carried out to check for any defects, delamination, haziness, bubbles, or other imperfections. Dimensional checks and compliance with specifications are also verified.

   Main Materials

  Tempered Glass Panes: These are the primary structural components, providing high impact resistance and thermal stability. Available in various thicknesses, tints, colors, and coatings (e.g., low-iron, reflective).

  Interlayers: These bonding layers are crucial for safety and other functional properties. The choice depends on the specific application requirements:

  PVB (Polyvinyl Butyral): The most common interlayer. Offers excellent adhesion, flexibility, acoustic dampening, and UV blocking. Available in clear, colored, or custom printed forms.

  SGP (SentryGlas® Plus / SentryGlas®): A high-performance ionoplast interlayer from DuPont/Kuraray. Significantly stiffer, stronger, and more clear than PVB. Used for structural glazing, hurricane-resistant, and blast-resistant applications. Provides superior post-breakage strength and minimizes edge delamination.

• Advantages and Safety

  Advantages

  Tempered laminated glass combines the best features of both tempered and laminated glass:



  Unparalleled Safety

  Post-Breakage Integrity: If one or both tempered panes break, the fragments remain firmly adhered to the interlayer, preventing dangerous shards from.

  UV Blocking: Most interlayers (especially PVB and SGP) block a high percentage (typically 99% or more) of harmful UV rays, protecting interiors from fading and degradation.

  Design Versatility: Can incorporate colored interlayers, printed images, textiles, LEDs, or low-iron glass for enhanced aesthetics.

• Application Scenarios

  Due to its superior safety and performance characteristics, tempered laminated glass is ideal for high-demanding applications:

  Overhead Glazing: Skylights, canopies, sloped glazing, roof lights – where falling glass is a critical concern.

  Structural Glazing: Glass floors, glass stairs, glass bridges, glass fins, and structural balustrades where the glass is a load-bearing element.

  Security & Safety Glazing: Bullet-resistant glass, blast-resistant glass, hurricane-resistant windows, forced-entry resistant applications.

  Balustrades & Railings: Both interior and exterior, especially frameless designs.

  Large-Span Windows & Doors: Where maximum safety and resistance to breakage are needed.

  Prisons, Banks, Museums, Art Galleries: For enhanced security and protection of valuable assets.

  Aquariums & Zoo Enclosures: Where robust, impact-resistant, and safe containment is essential.

  Silent Rooms & Recording Studios: Due to exceptional acoustic properties.

  Energy Efficiency: Can be combined with low-e coatings or specific interlayers for improved thermal performance.

  Bespoke Design: Allows for custom colors, patterns, and embedded materials for unique aesthetic results.

• Product Advantages

  Unrivaled Safety: The ultimate in safety glazing for architectural and high-risk applications.

  Extreme Durability: Resists breakage from severe impacts, seismic activity, and high winds.

  Structural Integrity: Can maintain protective barrier even after breakage, preventing fall-through or intrusion.

  Acoustic Comfort: Creates quieter indoor environments by significantly reducing outside noise.

  UV Shielding: Protects interiors from sun damage and fading.

  High Aesthetic Value: Clear, low-iron, or custom-designed options for various architectural styles.

  Long-term Performance: Excellent resistance to delamination and weathering.

  Main Parameter Display (Examples)

  Specific parameters will vary based on glass thickness, number of layers, interlayer type, and manufacturer capabilities.

  Glass Thickness Range: Each individual tempered pane can range from 3mm up to 25mm.

  Total laminated glass thickness varies widely, from 6.38mm (3mm+0.38PVB+3mm) to over 100mm for specialized bullet/blast-resistant glass.

  Interlayer Thickness:

  PVB: Common thicknesses are 0.38mm, 0.76mm, 1.14mm, 1.52mm, or multiple layers (e.g., 2.28mm, 3.04mm).

  SGP: Common thicknesses are 0.89mm, 1.52mm, 2.28mm.

  Number of Plies: Can be 2-ply (two glass panes + one interlayer), 3-ply, or more, depending on required strength and security.
