Secure Tempered Laminated Glass: Safety & Strength

Enhanced Strength

• Superior Safety

  Tempering: This is a heat-treatment process that strengthens glass, making it significantly more resistant to breakage. During tempering, the glass is heated to high temperatures and then rapidly cooled. This process creates a state of compression on the glass surface and tension within the core, which makes the glass much stronger. When tempered glass does break, it shatters into small, relatively harmless, cube-like pieces instead of sharp, jagged shards.

  Lamination: This process involves bonding two or more panes of glass together with an interlayer, typically made of polyvinyl butyral (PVB), ethylene-vinyl acetate (EVA), or a similar material. The interlayer holds the glass fragments together if the glass breaks, minimizing the risk of injury from flying shards and providing increased security.

  Key Characteristics and Benefits

  High Strength: Tempered glass is much stronger than regular (annealed) glass. Safety: Even if the glass breaks, the interlayer holds the fragments together, reducing the risk of injury from sharp shards. The small, blunt fragments from the tempered glass further enhance safety.

  Security: Provides enhanced resistance to impact and forced entry compared to either tempered or laminated glass alone. The laminated structure makes it more difficult to penetrate. Durability: Offers increased resistance to weathering and UV exposure.

  Acoustic Properties: The interlayer can also provide sound dampening benefits. Design Flexibility: Available in various thicknesses, sizes, shapes, and colors. Versatility: Suitable for many applications, including those where safety is critical.

  Typical Applications

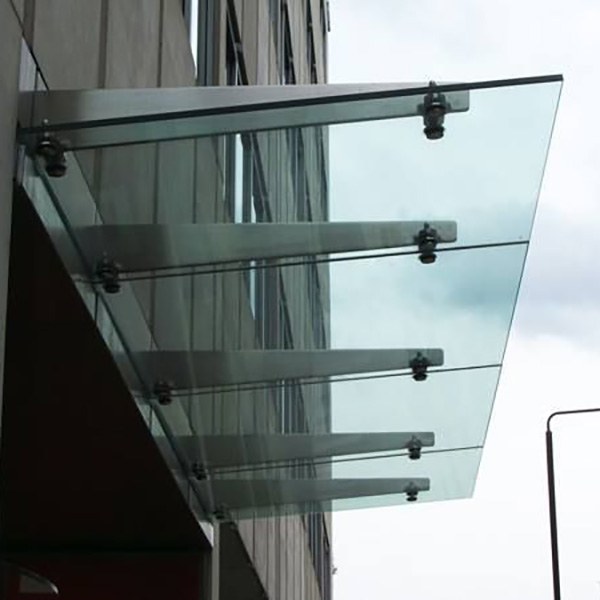

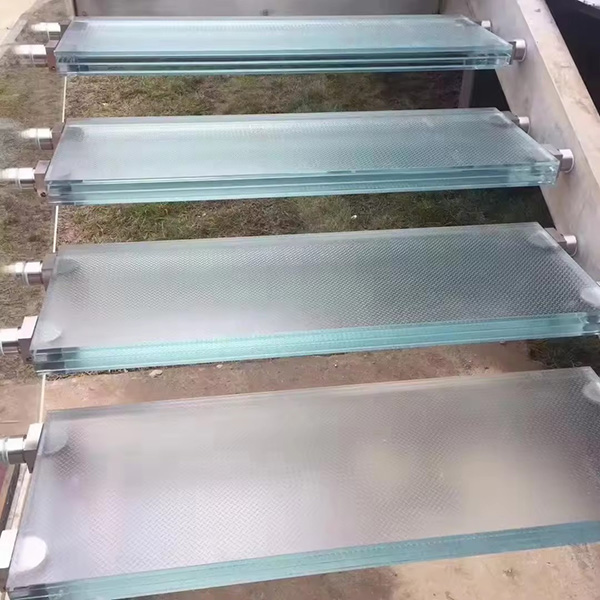

  Architectural Glazing: Windows, doors, skylights, curtain walls, storefronts, interior glass partitions. Safety Applications: Shower doors, balustrades, glass railings, glass floors, ramps. Security Glass: Security windows, display cases, and any application needing resistance to impact. Automotive: Windshields (though typically not only tempered laminated, but rather specialized variations).

  In summary, tempered laminated glass is a high-performance glass product that offers superior safety, strength, and security compared to standard glass products. It's a popular choice where safety and performance are paramount.

• Excellent Thermal Stability

  Tempered laminated glass with excellent thermal stability combines the safety and strength features of tempered laminated glass with enhanced resistance to thermal stresses. This makes it particularly suitable for applications exposed to high or fluctuating temperatures.

  What is Thermal Stability in Tempered Laminated Glass?

  Thermal stability refers to the glass's ability to withstand temperature variations without cracking, warping, or losing its structural integrity. Excellent thermal stability means the glass can endure:

  Rapid temperature changes (thermal shock)
  High ambient temperatures
  Direct exposure to sunlight
  Heating or cooling processes

  Features of Tempered Laminated Glass with Excellent Thermal Stability

  High Resistance to Thermal Stress: Designed to endure sudden temperature fluctuations that would crack or damage standard glass.

  Reduced Risk of Thermal Shock:Maintains integrity under extreme heat changes, ideal for environments with intense sunlight, heating systems, or outdoor installations.

  Enhanced Performance in High-Temperature Environments: Suitable for applications like skylights, facades, or indoor partitions exposed to hot climates.

  Stable Structural Properties: Preserves its safety, strength, and safety features even after temperature variations.

  How is This Achieved?

  Specialized Manufacturing Processes:The glass undergoes controlled heat treatments and careful selection of materials to optimize thermal properties.

  Layer Optimization:The interlayer (e.g., PVB) and the glass layers are formulated or selected to withstand higher temperature ranges.

  Quality Control: Rigorous testing to ensure resistance to thermal stresses and minimize the risk of thermal breakage.

  Benefits

  Safety and Durability: Prevents breakage due to thermal shock, ensuring safety in demanding environments.

  Design Flexibility: Enables use in architectural features that are exposed to heat, such as solar shading devices, heated floors, or hot climates.

  Extended Application Range: Ideal for regions with high temperature variations or continuous sunlight exposure.

  Typical Applications

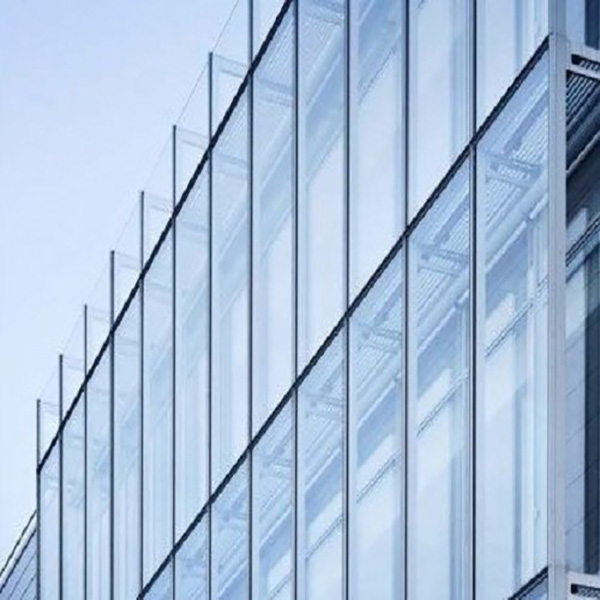

  Architectural Glazing: Skylights, curtain walls, and facades in hot climates.

  Solar Control: As part of energy-efficient window systems that withstand temperature fluctuations.

  Indoor & Outdoor Partitions: That may be exposed to heating or cooling systems.

  Automotive and Marine: Where temperature stability enhances safety and performance.

  Summary

  Tempered laminated glass with excellent thermal stability offers a combination of safety, impact resistance, and high resistance to thermal stresses. It is an ideal choice for demanding environments where temperature fluctuations are common, ensuring long-term performance and safety.

• Production Process

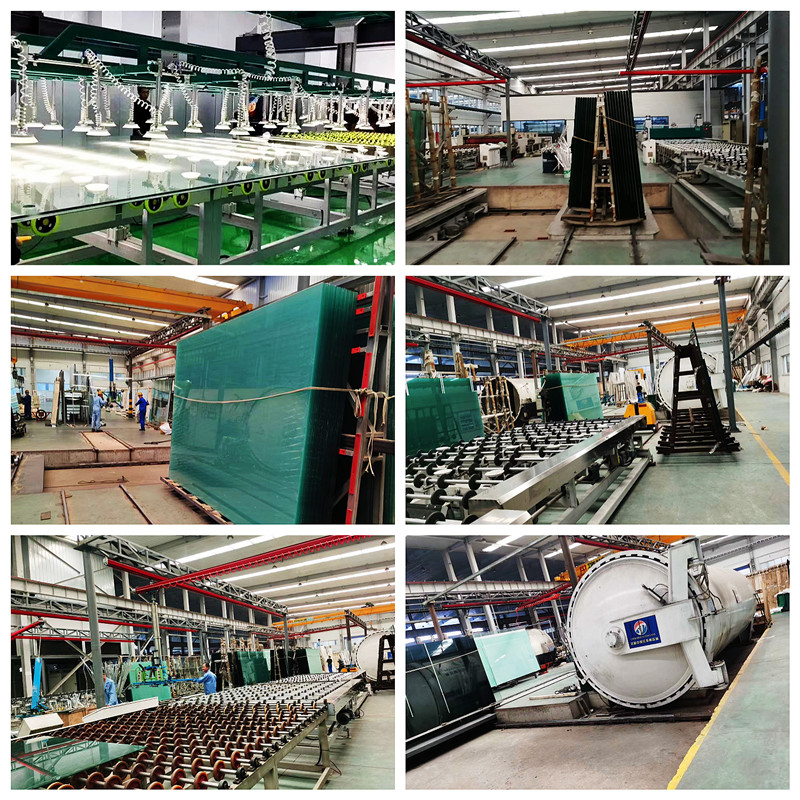

  The production of tempered laminated glass involves a series of careful steps. Here's a breakdown of the process:

  Glass Selection and Cutting

  Glass Type Selection: The process typically begins with the selection of glass. The choice depends on the desired application and performance requirements. Common types include clear float glass, tinted glass, low-emissivity (Low-E) glass, or patterned glass. The glass must be "tempering quality" which refers to its chemical composition.

  Cutting: The glass sheets are cut to the required dimensions using automated cutting tables. These machines use computer-controlled diamond-tipped cutters to score the glass. Precise cutting is crucial to ensure the glass fits the desired frame and dimensions.

  Edge Grinding and Polishing ,drilling holes and Water-jet couout Notch, etc.

  To remove sharp edges and to prepare them for the temper process, the cut glass edges are ground and polished. This is often done using automated grinding and polishing machines to minimize the risk of edge fractures during tempering. Edge treatments help prevent stress concentrations, which could cause the glass to break during the heat treatment process.

  Washing and Cleaning

  The glass sheets undergo a rigorous washing process. This is crucial to remove any dust, oils, or debris that could interfere with the adhesion of the interlayer or affect the tempering process. Specialized washing machines use water, detergents, and brushes or air knives to thoroughly clean the glass.

  Tempering (The Heat Treatment Process)

  Heating: The cleaned glass sheets are fed into a tempering furnace. The furnace reaches temperatures of around 620-680°C (1148-1256°F), which is just below the glass's softening point. The glass is heated evenly to ensure uniform heating and minimize thermal stress.

  Soaking: The glass is held at the high temperature for a specific period, depending on the glass thickness and type. This ensures that the entire glass pane reaches a uniform temperature.

  Quenching (Rapid Cooling): After reaching the correct temperature, the glass is rapidly cooled by high-pressure air jets from nozzles aimed at both surfaces of the glass. This rapid cooling "freezes" the surface in a state of compression and the core in tension, resulting in its increased strength and its resistance to breakage.

  Testing and Inspection: After the tempering process, the glass typically undergoes testing for fragmentation and stress distribution according to relevant standards (e.g., EN 12150, ASTM C1048). This ensures that the glass meets the desired strength and safety criteria.

  Interlayer Assembly (Lamination Process)

  Interlayer Selection: The transparent interlayer (e.g., PVB, EVA, SentryGlas®) is selected based on performance needs (e.g., security, sound insulation, UV protection). The interlayer is typically supplied as a thin film.

  Assembly: The interlayer is placed between two tempered glass panes. Depending on the process, this assembly may be done in a clean room environment to prevent any impurities from contaminating the structure. The correct alignment and positioning of the glass panes and the interlayer are critical.

  Pre-Pressing (Optional): The assembled glass stack is often sent to a pre-pressing station, where the air between the glass panes and the interlayer is removed to improve adhesion. This could be done in a vacuum chamber or using rollers.

  Autoclaving/Oven Lamination: The "pre-processed" glass package is then sent to an autoclave (for PVB laminations) or convection oven (for EVA and other laminations) for the final heating and bonding process.

  Autoclave: In an autoclave, the glass package is subjected to high pressure (typically around 145-200 psi) and high temperature (typically 130-150°C, or 266-302°F) for a defined time period. The pressure further removes air and ensures complete adhesion. For this process, the glass panes are commonly sealed at their entire perimeter with a plastic tape before being sent into the autoclave.

  Oven: Convection ovens are used, usually with high ambient temperatures for shorter times. This process has the advantage of enabling a more "automated" manufacturing process, leading to a faster turnaround time.

  Post-Lamination Inspection: The laminated glass is inspected for clarity, bubbles, delamination, and other defects.

  Edge Sealing (If Required)

  Specialized glass constructions - like bulletproof glass - may need edge sealing to protect against moisture ingress.

  Final Inspection and Quality Control

  The finished tempered laminated glass undergoes a final quality control check to ensure it meets all specifications. This includes checking dimensions, optical clarity, edge quality, and overall structural integrity.

  The glass is then carefully protected, and packaging is performed to prevent damage during transport and storage.

  Important Notes

  Safety: The entire process is carried out with strict safety protocols to protect workers from glass breakage and heat-related hazards including mandatory use of protective equipment (gloves, safety glasses, etc.).

  Customization: The process can be adapted to produce custom sizes, shapes, and glass types, depending on the application.

  Continuous Improvement: Glass manufacturers constantly invest in research and development to improve processes, product quality, and energy efficiency.

  This detailed explanation should provide a clear understanding of the production process for tempered laminated glass. The process demands precision, quality control, and attention to detail at every stage to ensure the final product is safe, durable, and meets the required performance standards.
