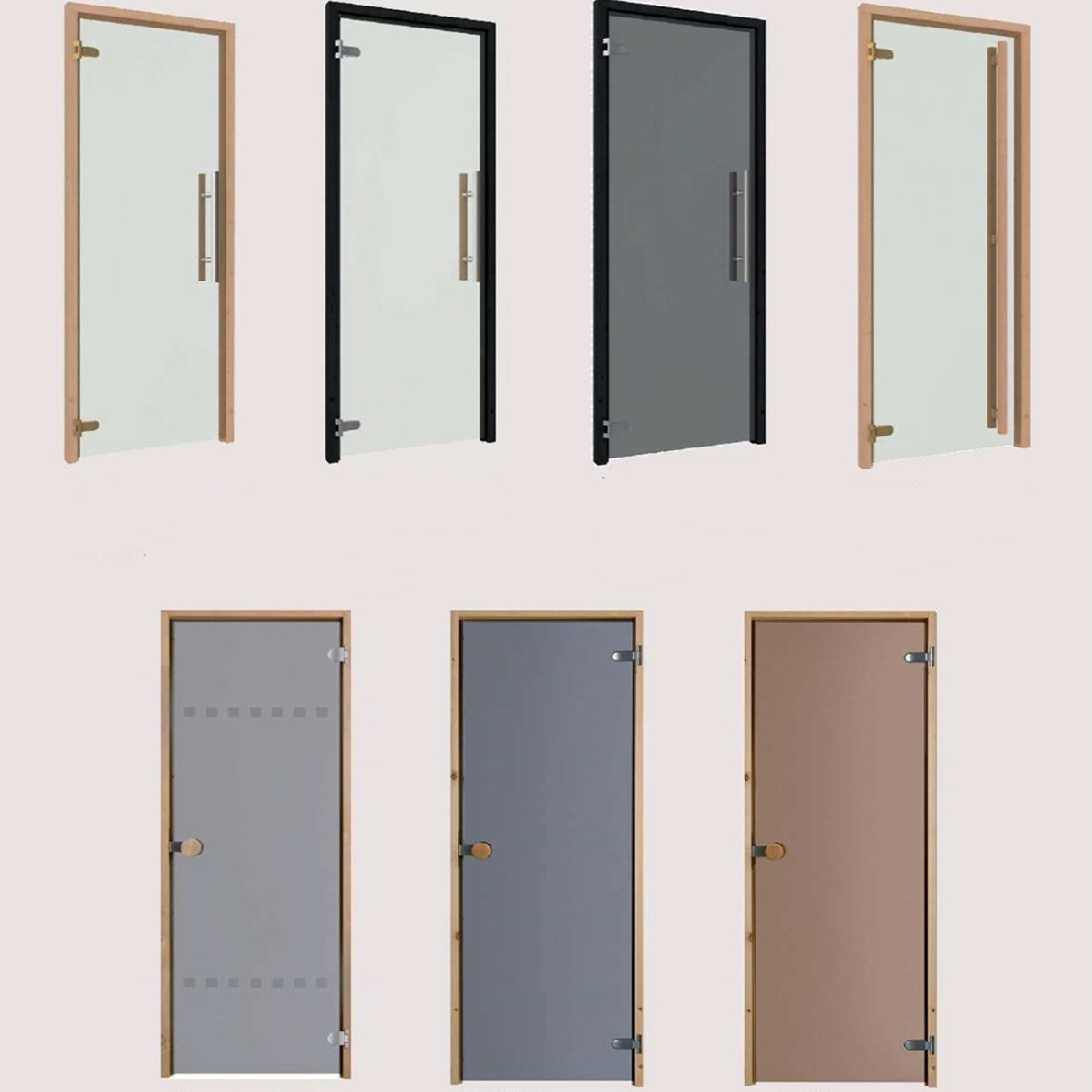

8mm Clear tempered Glass Sauna Door

8mm Clear tempered Glass Sauna Door

short description:

Clear tempered glass sauna door

Glass Thick : 6mm/8mm

Popular sizes includes:
6×19/7×19/8×19/9×19
6×20/7×20/8×20/9×20
6×21/7×21/8×21/9×21


Product Detail

Product Tags

What is sauna glass tempered doors and sauna glass windows ?
Sauna doors and windows are the main accessories of sauna rooms.
With the popularity of saunas, tempered glass doors and windows are increasingly used in sauna rooms.

Popular color and thick of tempered glass sauna door

6mm bronze tempered glass ,8mm bronze tempered glass ,8mm grey tempered glass ,8mm clear tempered glass ,8mm etched bronze glass,8mm etched clear tempered glass,8mm etched grey tempered glass

Popular size of tempered glass sauna door

1835mm/1935mm/2035mm×620mm/720mm/820mm

1835mm/1935mm/2035mm×621mm/721mm/821mm

1840mm/1940mm/2040mm×620mm/720mm/820mm

1850mm/1950mm/2050mm×620mm/720mm/820mm

1854mm/1954mm/2054mm×620mm/720mm/820mm

1800mm/1900mm/2000mm×600mm/700mm/800mm

Glass Door Quality Standard

Items

Tolerance

Test&Requirement Standard

Standard Size

(Width & Height)

±0.5mm~±1.0mm(30%)

± 0.5mm (70%)

L≤2000mm ±0.5mm(70%) / ±1.0mm(30%)

L≥2000mm ±2.0mm

Thickness

±0.2mm

Thick:6.0mm.8.0mm

Drill Hole Diameter

±0.5mm

According to the client drawing

Hole Position

±0.5mm

allowed 10% qty +-1mm

Hole to Hole

±0.5mm

allowed 10% qty +-1mm

Diagonal Length

±1mm~±2mm(30%)

±1mm (70%)

L≤2000mm ±1mm(70%) / ±2mm(30%)

L≥2000 ±3.0mm

Bubble Inclusion



Not permitted

Scratches



Not permitted

Broken edge and corner



Not permitted

Color and clear



According to approved Sample

Black dot&Spots



Not permitted

Stain&finger etching print



View from a distance of 600mm not permitted

Polished edgework



Whitish appearance not permitted

Surface dust



Not permitted

Surface moisture



Not permitted

Internal cracks or hole split



Not permitted

 Glass fragments



50mm*50mm Range≥40pcs

Straightness of edges



Bow less than0.15%&Wavy less than 0.08%

Breakage of glass



According to EN12150

Requirement of edges

<1>According to the client drawing to bevelled 2×45°
  <2>Corners need to be safety corners

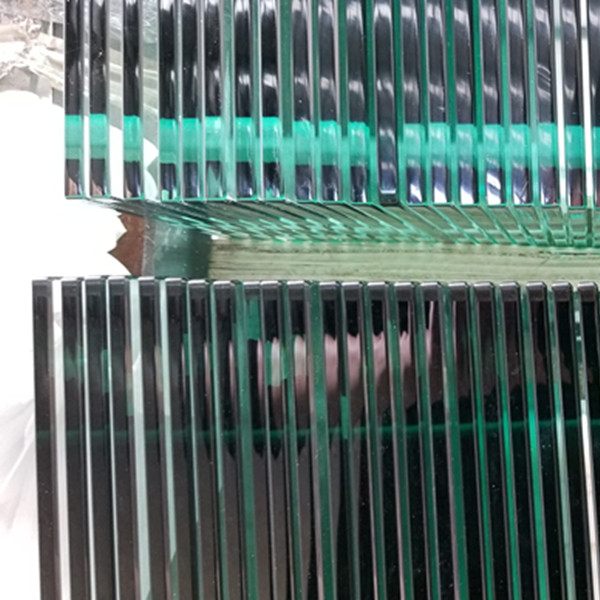

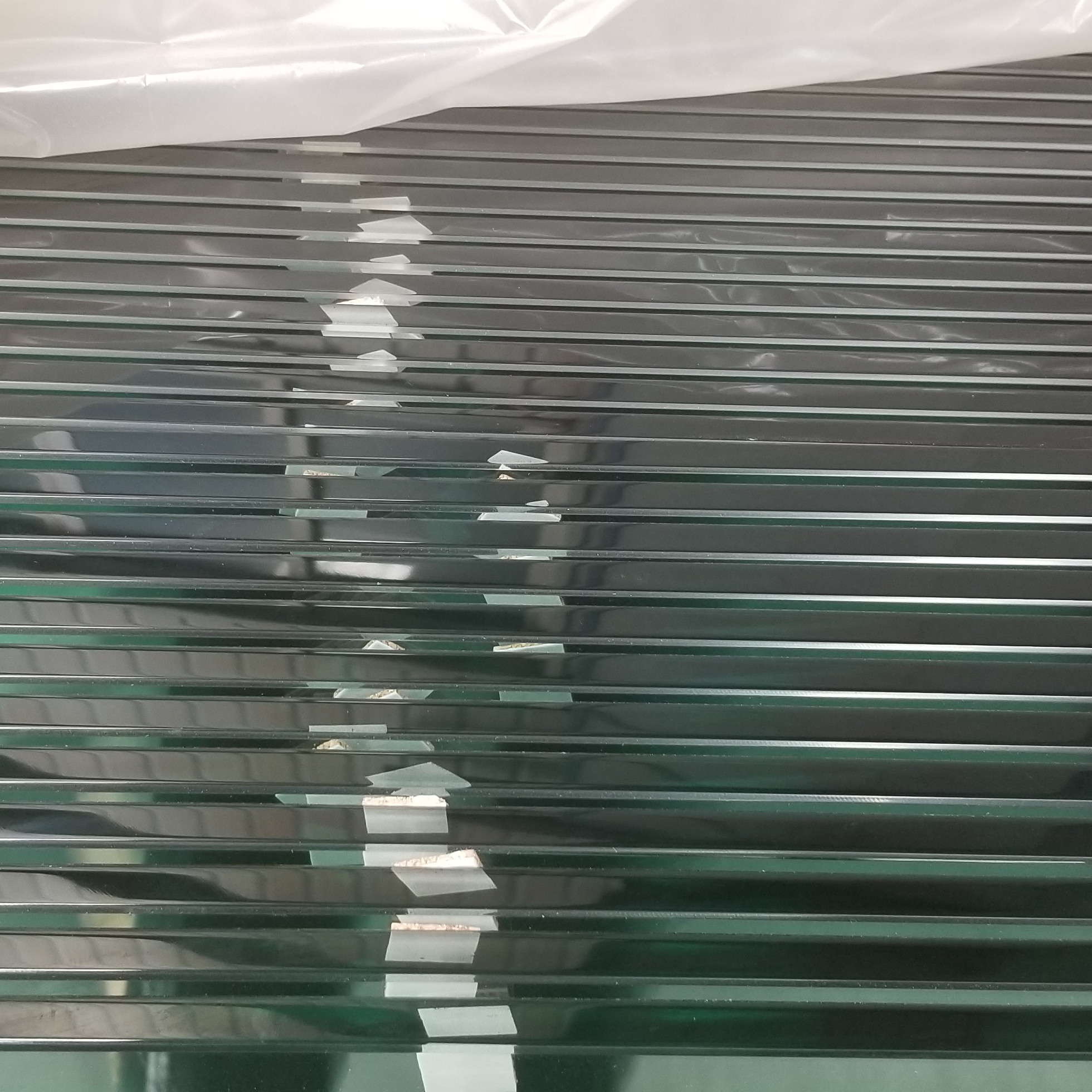

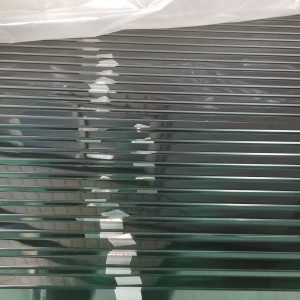

Product Display

白玻展示
白玻展示01
白玻展示02
白玻展示边部
白玻颗粒度_副本
白玻展示05

Loaded Display
